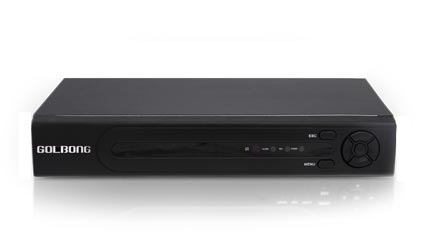

Analog HD Video Recorder
Modelo:3555-28
Channel: 8CH analog
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
Analog HD Video Recorder
3555-28
-
Descrição
-
Especificações
-
Documento
-
Comentário
-
Pergunta e resposta
Re-use the coaxial cable
The user can re-use existed coaxial cable to upgrade the analog system to HD CCTV with 3555-28 AHD Recorder.
Plug & play Setup
The user can complete the system upgrade with simple plug and play to 3555-28 AHD Recorder, no need to configure each of the camera front-end.
All-in-One System
The operator can use 3555-28 AHD Recorder to record the live stream from cameras, decode video feed for real time monitor, and search footage for review.
Motion recording and playback
The 3555-28 AHD Recorder can start record the video stream when the motion is detected. The operator doesn't need to playback all the footage, but only interests section.
Network access
The users can access 3555-28 AHD Recorder by the network to view the live, playback, even manage the recorder.
Rated Voltage and Power | |
Rated Voltage and Power | 110–240 VAC; 50/60 Hz; 1.5A |
External power adapterDC output | DC12V 2A |
Video | |
Video Standard | PAL or NTSC |
Compression | H.264 |
Outputs | VGA/HDMI |
Inputs | 8 composite video 1 Vpp 75 ohm automatic termination |
Audio | |
Inputs | 4 line in , mono RCA,1 Vpp, 10 kohm |
Output | 1 line out, mono RCA, 1 Vpp, 10 kohm |
Compression | G.711 |
Sampling rate | 8 kHz per channel |
Monitors | |
VGA/HDMI | Live, playback, menus |
Live Resolution | SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480 |
Display Modes | |
Screen | Full, full sequence, quad, multi-screen (live and playback), event call-up (live) |
Frame rate PAL/NTSC | 25/30 IPS per channel (real time) |
Multi-screen mode 4 channels | 1, 2x2, 3x3 |
Digital Zoom | Yes |
Display languages | Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI |
Alarm Handling | |
Inputs | N/A |
Outputs | N/A |
Events | Motion detect, Video Blind, Video Loss, |
Remote notification | Via Control Center software, email, Push message |
Malfunction relay | Disk space low, IP conflict, Disk failures |
Connections | |
Ethernet | 10/100Base-T, auto-sensing, half/full duplex, RJ45 |
USB | Two USB 2.0 ports |
Network | |
Protocols | HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP |
Cameras | 8*4M@15fps(AHD);8*3M@18fps(AHD);8*1080P(5 in 1) |
Storage | |
Internal HDD | 1 unit |
Redundancy | N/A |
Exporting | |
USB | Flash memory |
Network | Golbong Software |
Security | |
Password protection | Multi-level |
Recording | |
Overwrite modes | Continuous, overwrite |
Playback | |
Decoding Capacity | 4-CH |
Playback function | Fast forward/reverse, frame forward /reverse,freeze |
Digital Zoom | yes |
Search mode | Date/time, Event (motion, input) |
Mechanical | |
Dimensions (W x D x H)(excluding cabling) | 255(L) x 44(H) x 236(W) |
Weight | TBA |
Environmental | |
Operating temperature | +5 °C to +45 °C (+41 °F to +113 °F) |
Storage temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
Relative humidity | Operating: <93 % non-condensing Storage: <95 % non-condensing |
Ordering Information | |
Analog HD Recorder | 3555-28 |
-
